1.3 Inch LCD Display Module full viewing angle 24pin SPI interface 240*240 resolution 240 brightness driver IC ST7789
The 1.3 Inch LCD Display Module is a highly versatile and compact display component that packs a punch in a tiny package. With a resolution of 240 * 240, it presents sharp and detailed visuals, allowing for clear presentation of various types of information, from intricate icons to small text snippets.
Featuring a 24pin SPI interface, it offers enhanced connectivity options, making it effortless to integrate into a wide range of electronic devices. Whether it's a wearable gadget, a portable sensor, or a miniature IoT device, this module can be seamlessly incorporated.
Boasting a full viewing angle, users can enjoy consistent and clear visuals from any direction. This is especially crucial in applications where the display needs to be visible regardless of the viewing position, such as in wrist-worn devices.
With a brightness of 240 nits, it provides sufficient readability in typical indoor environments and can handle moderately lit outdoor scenarios. The driver IC ST7789 powers the display, ensuring reliable and stable performance, delivering crisp images time and time again.
Its ultra-compact size makes it a standout choice for space-constrained applications. The module takes up minimal space, yet doesn't compromise on functionality, making it an excellent option for designers looking to create sleek and miniature electronics.
Product Features:
Applicable Scenarios:
-
In smartwatches, it serves as the primary display, showing time, fitness data, notifications, and more. The 240 * 240 resolution is suitable for presenting compact yet detailed information. The full viewing angle ensures that users can easily see the screen regardless of how they tilt their wrists. The 24pin SPI interface can communicate with the watch's microcontroller, and the 240 brightness is visible in most indoor and outdoor situations.
-
For handheld medical devices, like glucometers or pulse oximeters, it can display measurement results, device status, and instructions. The high resolution helps medical professionals read the data accurately, the full viewing angle allows patients to also see the information easily, and the SPI interface can connect to the device's circuitry. The 240 brightness is suitable for use in medical offices or home healthcare settings.
-
In miniaturized IoT sensor hubs, it functions as a local display to show sensor readings, network status, and alerts. The small size fits well into the compact hub design, the resolution is sufficient to display key information, the full viewing angle is useful when the hub is placed in different orientations, and the 240 brightness ensures that technicians can monitor the data clearly in indoor environments.
Product Parameter:
| Panel Name | 1.3Inch LCD Display Module |
| Dimensions | 26.16*29.22*1.5mm |
| Viewing area size | 23.4*23.4mm |
| brightness | 240cd/m2 |
| Resolution | 240*240 |
| working temperature | -20°C~+70°C |
| storage temperature | -30°C~+80°C |
| interface | SPI |
| Driver IC | ST7789 |
| Pin count | 24 Pin |

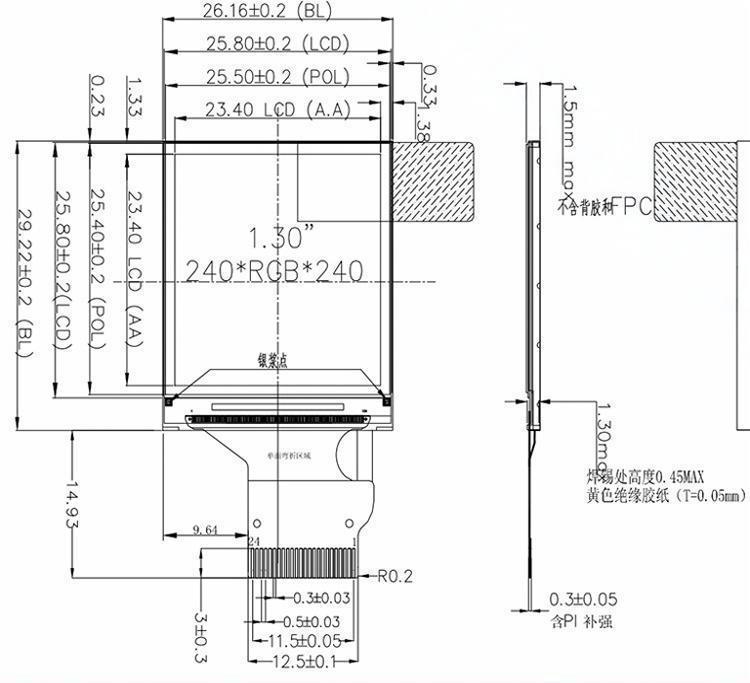

Drawing:
